ring blower with 2050 m³/h

Quantity	Unit price
To 2	€6,557.00*
From 3	€5,901.30*

Prices excl. VAT plus shipping costs

Special order, delivery time 16-18 Wochen

motor size

motor voltage

230 VΔ / 400 VY (3-phase)

400 VΔ / 690 VY (3-phase)

pcs

Product number: SKV-NDF-2050-3-826

Product information "ring blower with 2050 m³/h"

Double flute ring blower with following specifications for 50 Hz:

Max. air flow: 2050 m³/h
Connection: 201 mm flange

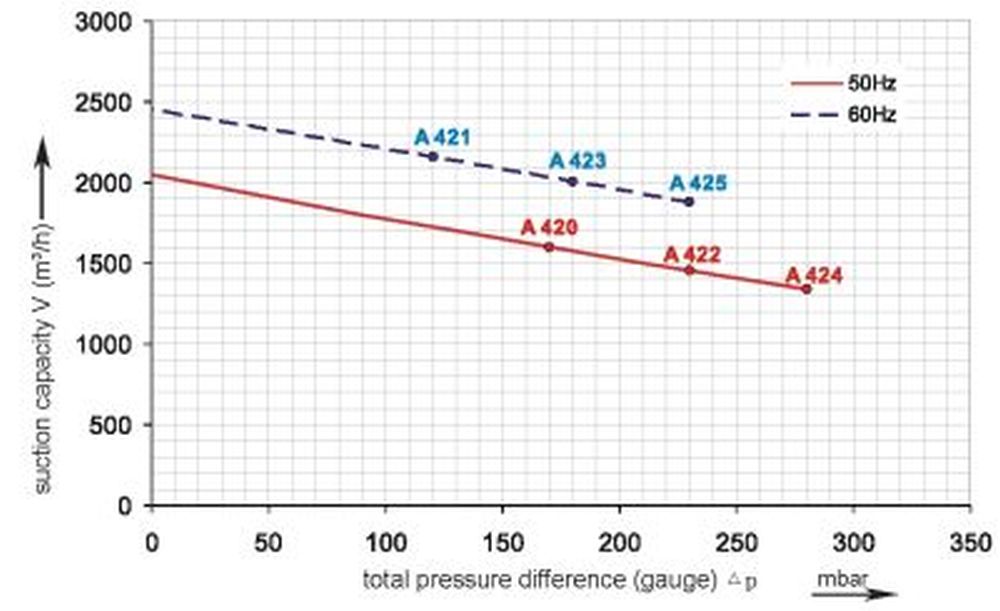

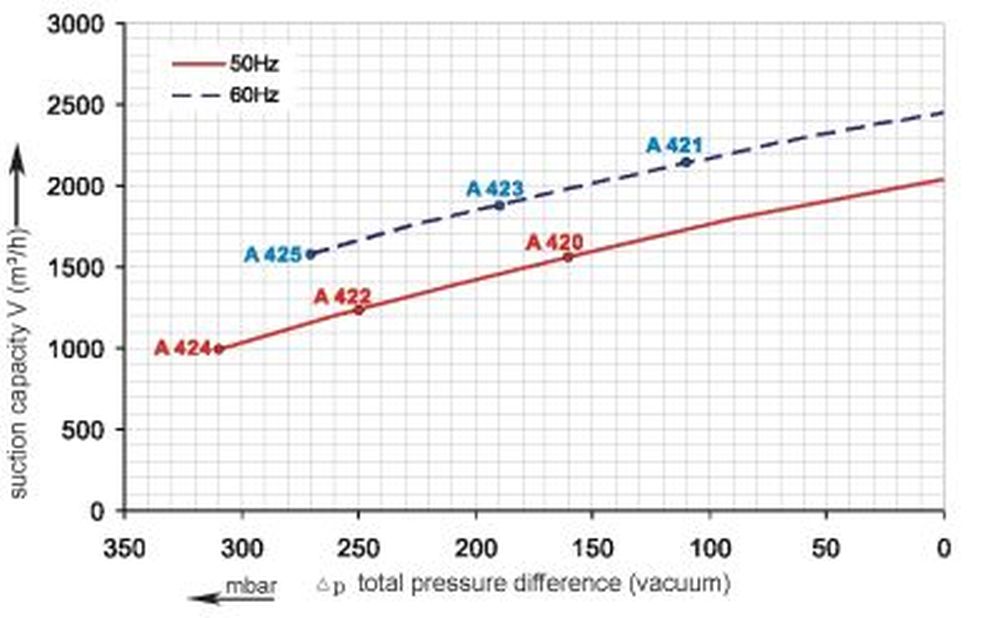

Model	Curves	Phases	Motor power [kW]	Energy classi- fication		Voltage [V]	Current [A]	Pressure max. [mbar]	Vacuum max. [mbar]
SKV-NDF-2050-3-927	A420	3~	15,0	IE1		345-415 Δ / 600-720 Y	35,0	+170	-160
SKV-NDF-2050-3-937	A422	3~	20,0	IE1		345-415 Δ / 600-720 Y	40,0	+230	-250
SKV-NDF-2050-3-947	A424	3~	25,0	IE1		345-415 Δ / 600-720 Y	52,0	+270	-310
SKV-NDF-2050-3-826	1	3~	15,0	IE2		200-260 Δ / 350-450 Y	26,5	+150	-160
SKV-NDF-2050-3-836	2	3~	18,5	IE2		200-260 Δ / 350-450 Y	32,0	+200	-220
SKV-NDF-2050-3-726	1	3~	17,3	IE3		220-240 Δ / 380-420 Y	31,7	+170	-160
SKV-NDF-2050-3-736	2	3~	21,3	IE3		220-240 Δ / 380-420 Y	38,3	+230	-250
SKV-NDF-2050-3-746	3	3~	25,3	IE3		220-240 Δ / 380-420 Y	46,5	+280	-310

For 3-D drawings / STEP files please send us an e-mail.

Downloads

Download IE1: Technische Daten / technical data

Download IE2: Technische Daten / technical data

Download IE3: Technische Daten / technical data

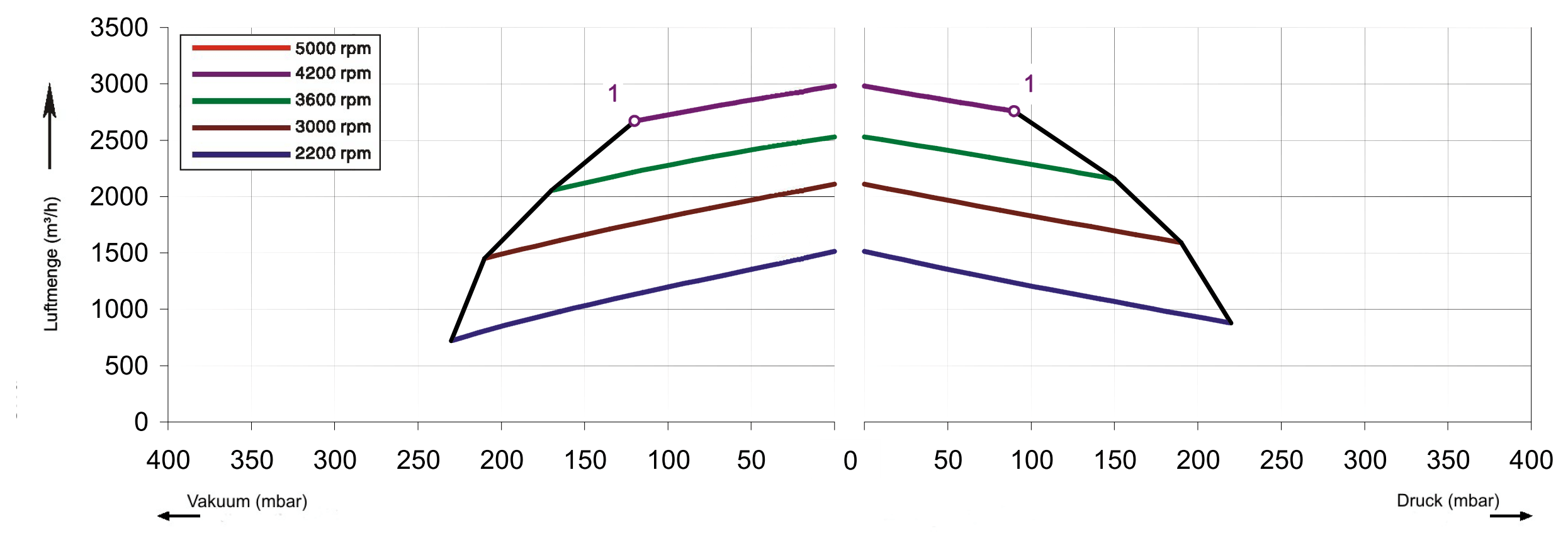

Download IE2: FU-Kennlinien NDF-Reihe
