silencer G 4" (metal)

SKV-tec GmbH

€126.38*

Prices excl. VAT plus shipping costs

Available, delivery time: heavily dependent on the destination

Length of the silencer

400 mm

800 mm

Product number: 140924-M

Product information "silencer G 4" (metal)"

Additional silencer for side channel blowers with G 4" connection thread

suitable for: Side channel blowers in pressure as well as vacuum operation

Function: The side channel blowers are equipped with silencers at the pressure side as well as at the suction side. Corresponding sound pressure levels of the respective models can be found in the corresponding data sheets.
Depending on the configuration further measures for sound insulation may be necessary. Our additional silencers can be simply connected in series with the silencers equipped by default. The assembly is possible via the factory-side threaded flanges. Using the additional silencers the sound pressure levels can be reduced by ~ 3dB(A) with the short version and by ~ 5dB(A) with the long version.

technical data:

Model:	Thread G 4" (both ends)
Dimension (Diameter C / Length A):	150 mm / 520 mm or 920 mm
fits for:	SKV-NS-1050 / SKV-NS-1370 SKV-ND-1110 SKV-NDF-1940 / SKV-NDF-2050

Accesories

ring blower with 1940 m³/h

Double flute ring blower with following specifications for 50 Hz: Max. air flow: 1940 m³/hConnection thread: G 4" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-NDF-1940-3-927 A410 3~ 15,0 IE1 345-415 Δ / 600-720 Y 35,0 +110 -130 SKV-NDF-1940-3-937 A412 3~ 20,0 IE1 345-415 Δ / 600-720 Y 40,0 +200 -220 SKV-NDF-1940-3-946 A414 3~ 25,0 IE1 200-240 Δ / 345-415 Y 52,0 +270 -310 SKV-NDF-1940-3-947 A414 3~ 25,0 IE1 345-415 Δ / 600-720 Y 52,0 +270 -310 SKV-NDF-1940-3-826 1 3~ 15,0 IE2 200-260 Δ / 350-450 Y 26,5 +110 -130 SKV-NDF-1940-3-836 2 3~ 18,5 IE2 200-260 Δ / 350-450 Y 32,0 +170 -190 SKV-NDF-1940-3-726 1 3~ 17,3 IE3 220-240 Δ / 380-420 Y 31,7 +140 -150 SKV-NDF-1940-3-736 2 3~ 21,3 IE3 220-240 Δ / 380-420 Y 38,3 +200 -220 SKV-NDF-1940-3-746 3 3~ 25,3 IE3 220-240 Δ / 380-420 Y 46,5 +300 -300 For 3-D drawings / STEP files please send us an e-mail.

From €4,812.30*

Details

ring blower with 1110 m³/h

Double stage ring blower with following specifications for 50 Hz: Max. air flow: 1110 m³/hConnection thread: G 4" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-ND-1110-3-917 A390 3~ 12,5 IE1 345-415 Δ / 600-720 Y 28,0 +270 -300 SKV-ND-1110-3-927 A392 3~ 16,5 IE1 345-415 Δ / 600-720 Y 35,0 +370 -420 SKV-ND-1110-3-937 A394 3~ 20,0 IE1 345-415 Δ / 600-720 Y 40,0 +500 -440 SKV-ND-1110-3-946 A396 3~ 25,0 IE1 200-240 Δ / 345-415 Y 52,0 +590 -450 SKV-ND-1110-3-817 1 3~ 11,0 IE2 350-450 Δ / 610-715 Y 22,0 +220 -240 SKV-ND-1110-3-826 2 3~ 15,0 IE2 200-260 Δ / 350-450 Y 30,5 +330 -360 SKV-ND-1110-3-836 3 3~ 18,5 IE2 200-260 Δ / 350-450 Y 37,0 +430 -440 SKV-ND-1110-3-716 1 3~ 12,6 IE3 200-240 Δ / 380-420 Y 23,3 +240 -270 SKV-ND-1110-3-726 2 3~ 17,3 IE3 200-240 Δ / 380-420 Y 31,7 +360 -410 SKV-ND-1110-3-737 3 3~ 21,3 IE3 380-420 Δ / 660-725 Y 38,3 +480 -440 SKV-ND-1110-3-746 4 3~ 25,3 IE3 200-240 Δ / 380-420 Y 46,5 +590 -440 For 3-D drawings / STEP files please send us an e-mail.

From €4,374.90*

Details

ring blower with 1370 m³/h

Single stage ring blower with following specifications for 50 Hz: Max. air flow: 1370 m³/hConnection thread: G 4" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-NS-1370-3-907 A400 3~ 8,5 IE1 345-415 Δ / 600-720 Y 18,2 +110 -120 SKV-NS-1370-3-917 A402 3~ 12,5 IE1 345-415 Δ / 600-720 Y 28,0 +200 -210 SKV-NS-1370-3-937 A404 3~ 18,5 IE1 345-415 Δ / 600-720 Y 37,0 +340 -320 SKV-NS-1370-3-806 1 3~ 7,5 IE2 200-260 Δ / 350-450 Y 13,4 +80 -80 SKV-NS-1370-3-816 2 3~ 11,0 IE2 200-260 Δ / 350-450 Y 19,8 +150 -150 SKV-NS-1370-3-826 3 3~ 15,0 IE2 200-260 Δ / 350-450 Y 26,5 +230 -250 SKV-NS-1370-3-836 4 3~ 18,5 IE2 200-260 Δ / 350-450 Y 32,0 +310 -320 SKV-NS-1370-3-706 1 3~ 8,6 IE3 220-240 Δ / 380-420 Y 15,5 +110 -120 SKV-NS-1370-3-716 2 3~ 12,6 IE3 220-240 Δ / 380-420 Y 23,3 +200 -210 SKV-NS-1370-3-726 3 3~ 17,3 IE3 220-240 Δ / 380-420 Y 31,7 +300 -310 SKV-NS-1370-3-736 4 3~ 21,3 IE3 220-240 Δ / 380-420 Y 38,3 +370 -320 For 3-D drawings / STEP files please send us an e-mail.

From €3,276.90*

Details

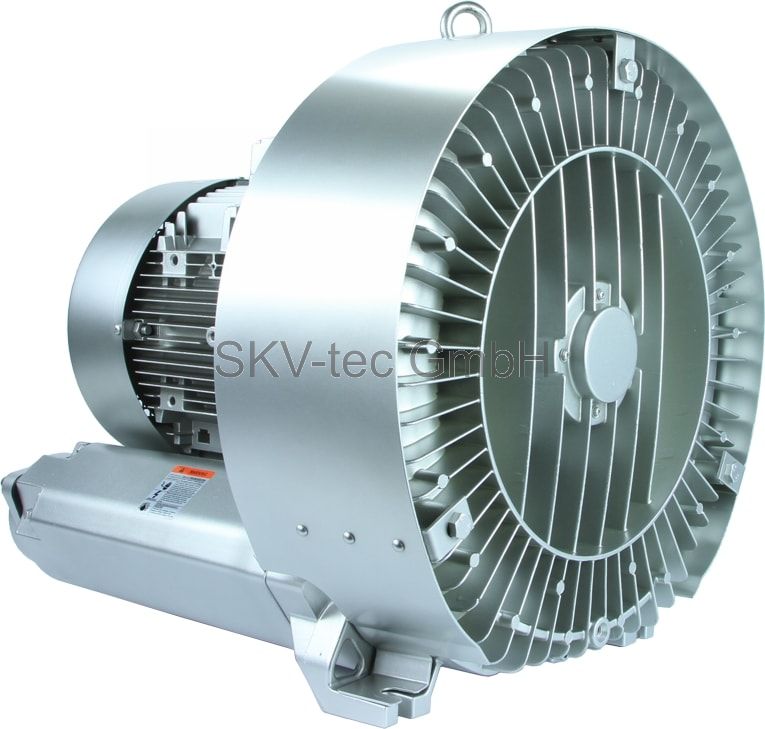

ring blower with 1050 m³/h

Single stage ring blower with following specifications for 50 Hz: Max. air flow: 1050 m³/hConnection thread: G 4" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-NS-1050-3-907 A380 3~ 8,5 IE1 345-415 Δ / 600-720 Y 18,2 +190 -190 SKV-NS-1050-3-917 A382 3~ 12,5 IE1 345-415 Δ / 600-720 Y 28,0 +280 -290 SKV-NS-1050-3-937 A384 3~ 18,5 IE1 345-415 Δ / 600-720 Y 37,0 +460 -360 SKV-NS-1050-3-806 1 3~ 7,5 IE2 200-260 Δ / 350-450 Y 13,4 +150 -160 SKV-NS-1050-3-816 2 3~ 11,0 IE2 200-260 Δ / 350-450 Y 19,8 +250 -270 SKV-NS-1050-3-826 - 3~ 15,0 IE2 200-260 Δ / 350-450 Y 26,5 +390 -350 SKV-NS-1050-3-836 3 3~ 18,5 IE2 200-260 Δ / 350-450 Y 32,0 +460 -360 SKV-NS-1050-3-706 1 3~ 8,6 IE3 200-240 Δ / 380-420 Y 15,5 +180 -190 SKV-NS-1050-3-716 2 3~ 12,6 IE3 200-240 Δ / 380-420 Y 23,3 +280 -290 SKV-NS-1050-3-726 3 3~ 17,3 IE3 200-240 Δ / 380-420 Y 31,7 +410 -350 SKV-NS-1050-3-736 4 3~ 21,3 IE3 200-240 Δ / 380-420 Y 38,3 +500 -360 For 3-D drawings / STEP files please send us an e-mail.

From €3,210.30*
