double stage high pressure ring blower
from 47 - 165 m³/h
comparison tables for models from other manufacturers
Are IE2 motors the better choice?
(advantages and cost analysis)
Double stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 47 m³/hConnection thread: G 1¼" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HD-47-1-171 B150S 1~ 1,5 - 230 9,7 +600 -370 SKV-HD-47-3-926 B150 3~ 0,81 IE1 200-240 Δ / 345-415 Y 2,3 +490 -370 SKV-HD-47-3-856 B152 3~ 1,5 IE2 Sold out -> Replacement model: SKV-HD-47-3-756 SKV-HD-47-3-P36 1 3~ 0,95 IE3 190-210 YY / 220-240 Δ / 380-420 Y 2,1 +490 -370 SKV-HD-47-3-756 2 3~ 1,75 IE3 220-240 Δ / 380-420 Y 3,5 +650 -370 For 3-D drawings / STEP files please send us an e-mail.
Double stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 65 m³/hConnection thread: G 1¼" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HD-65-1-171 1 1~ 1,5 - 230 9,7 +550 -400 SKV-HD-65-3-846 2 3~ 1,1 IE2 Sold out -> Replacement model: SKV-HD-65-3-P46 SKV-HD-65-3-856 3 3~ 1,5 IE2 200-260 Δ / 350-450 Y 3,05 +540 -440 SKV-HD-65-3-P46 1 3~ 1,3 IE3 190-210 YY /220-240 Δ / 380-420 Y 2,9 +480 -440 SKV-HD-65-3-P56 2 3~ 1,75 IE3 190-210 YY /220-240 Δ / 380-420 Y 3,5 +660 -440 SKV-HD-65-3-P66 3 3~ 2,5 IE3 190-210 YY /220-240 Δ / 380-420 Y 5,0 +750 -440 For 3-D drawings / STEP files please send us an e-mail.
Double stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 87 m³/hConnection thread: G 1¼" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HD-87-3-926 B190 3~ 1,5 IE1 200-240 Δ / 345-415 Y 4,3 +450 -480 SKV-HD-87-3-956 B192 3~ 3,3 IE1 200-240 Δ / 345-415 Y 7,5 +750 -500 SKV-HD-87-3-826 1 3~ 1,5 IE2 200-260 Δ / 350-450 Y 3,05 +450 -480 SKV-HD-87-3-836 2 3~ 2,2 IE2 200-260 Δ / 350-450 Y 4,4 +700 -480 SKV-HD-87-3-P26 1 3~ 1,75 IE3 190-210 YY /220-240 Δ / 380-420 Y 3,5 +460 -500 SKV-HD-87-3-P36 2 3~ 2,5 IE3 190-210 YY /220-240 Δ / 380-420 Y 5,0 +730 -500 SKV-HD-87-3-P46 3 3~ 3,45 IE3 190-210 YY /220-240 Δ / 380-420 Y 6,7 +830 -500 For 3-D drawings / STEP files please send us an e-mail.
Double stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 120 m³/hConnection thread: G 1¼" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HD-120-3-926 B210 3~ 2,2 IE1 200-240 Δ / 345-415 Y 6,6 +460 -470 SKV-HD-120-3-977 B212 3~ 4,0 IE1 345-415 Δ / 600-720 Y 9,0 +820 -500 SKV-HD-120-3-826 1 3~ 2,2 IE2 200-260 Δ / 350-450 Y 4,4 +450 -470 SKV-HD-120-3-877 2 3~ 4,0 IE2 350-450 Δ / 610-715 Y 7,6 +820 -500 SKV-HD-120-3-726 1 3~ 2,5 IE3 220-240 Δ / 380-420 Y 5,0 +540 -490 SKV-HD-120-3-P56 2 3~ 3,45 IE3 190-210 YY /220-240 Δ / 380-420 Y 6,7 +730 -500 SKV-HD-120-3-P76 3 3~ 4,6 IE3 190-210 YY /220-240 Δ / 380-420 Y 8,6 +820 -500 For 3-D drawings / STEP files please send us an e-mail.
Double stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 165 m³/hConnection thread: G 1¼" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HD-165-3-847 1 3~ 4,0 IE2 350-450 Δ / 610-715 Y 7,6 +560 -510 SKV-HD-165-3-857 2 3~ 5,5 IE2 350-450 Δ / 610-715 Y 10,2 +750 -520 SKV-HD-165-3-P26 1 3~ 3,45 IE3 190-210 YY /220-240 Δ / 380-420 Y 6,7 +480 -570 SKV-HD-165-3-P46 2 3~ 4,6 IE3 190-210 YY /220-240 Δ / 380-420 Y 8,6 +690 -660 SKV-HD-165-3-P76 3 3~ 6,3 IE3 190-210 YY /220-240 Δ / 380-420 Y 11,8 +1000 -660 For 3-D drawings / STEP files please send us an e-mail.
Double stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 225 m³/hConnection thread: G 2" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HD-225-3-P26 1 3~ 3,45 IE3 190-210 YY /220-240 Δ / 380-420 Y 6,7 +260 -300 SKV-HD-225-3-736 2 3~ 4,6 IE3 220-240 Δ / 380-420 Y 8,6 +420 -480 SKV-HD-225-3-746 3 3~ 6,3 IE3 220-240 Δ / 380-420 Y 11,8 +720 -530 SKV-HD-225-3-756 4 3~ 8,6 IE3 220-240 Δ / 380-420 Y 15,5 +900 -530 For 3-D drawings / STEP files please send us an e-mail.

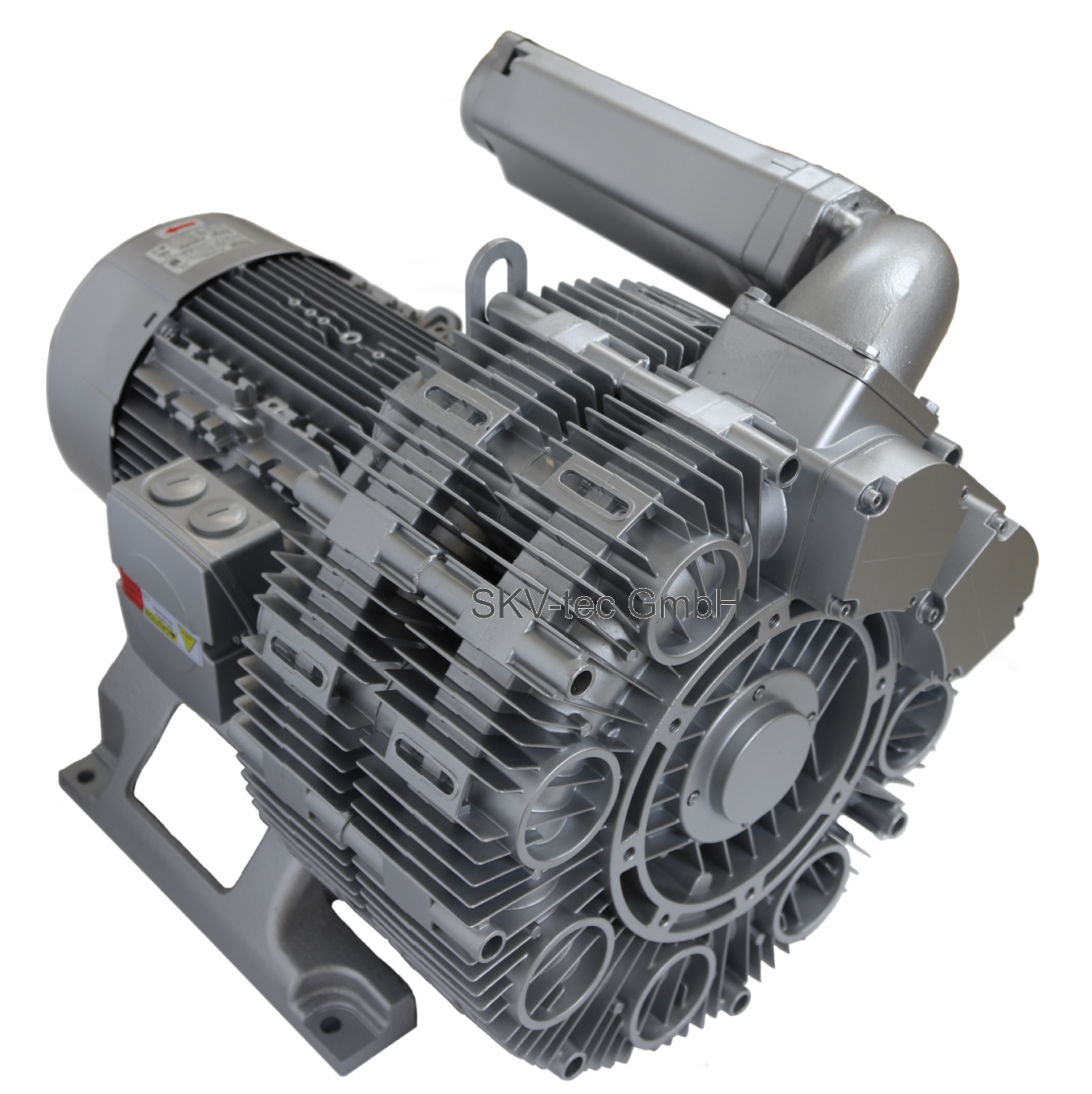

Double stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 315 m³/hConnection thread: G 2½" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HD-315-3-P36 1 3~ 4,6 IE3 190-210 YY /220-240 Δ / 380-420 Y 8,6 +370 -420 SKV-HD-315-3-746 2 3~ 6,3 IE3 220-240 Δ / 380-420 Y 11,8 +550 -530 SKV-HD-315-3-756 3 3~ 8,6 IE3 220-240 Δ / 380-420 Y 15,5 +820 -530 SKV-HD-315-3-766 4 3~ 12,6 IE3 220-240 Δ / 380-420 Y 23,3 +870 -530 For 3-D drawings / STEP files please send us an e-mail.

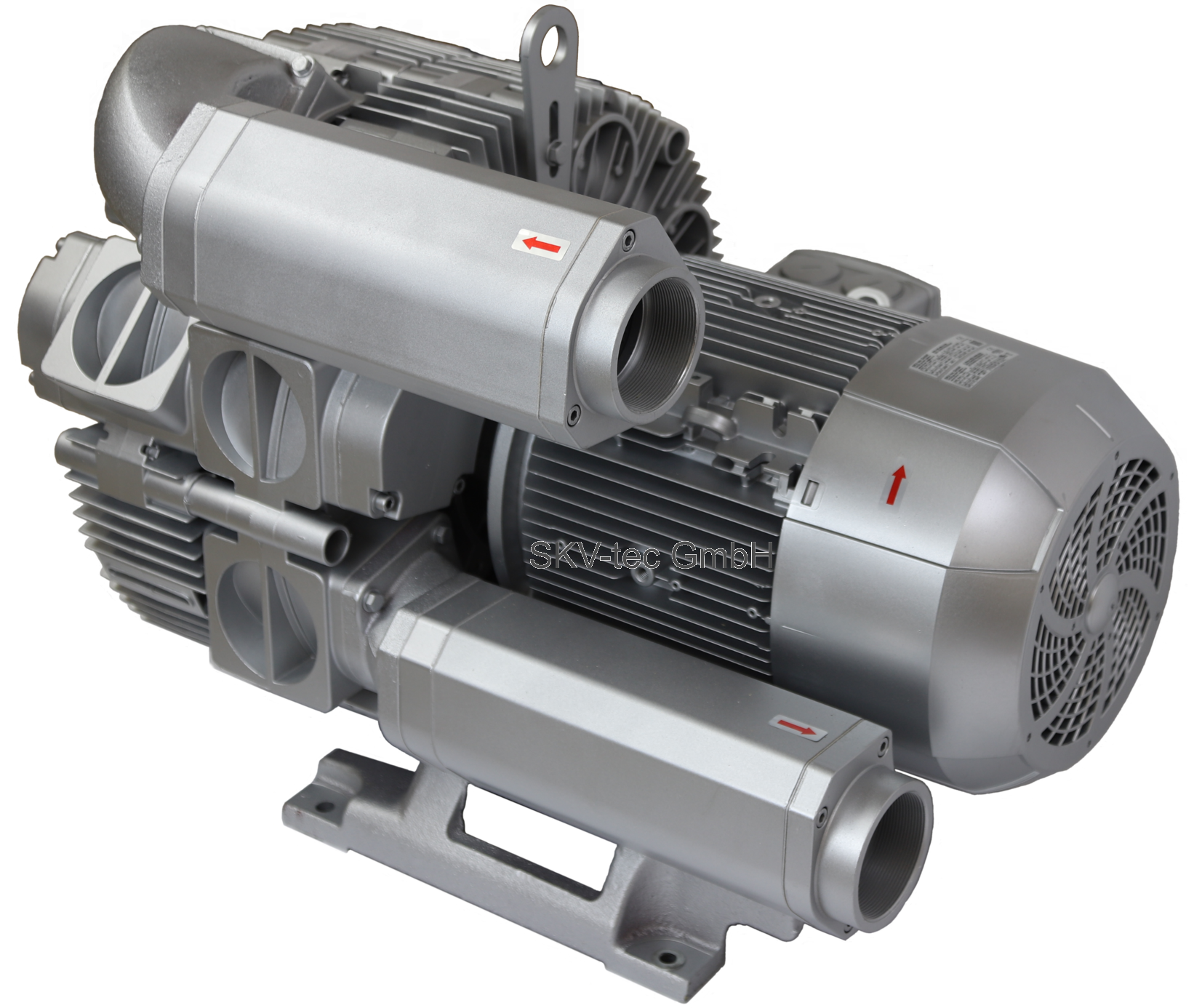

Double stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 480 m³/hConnection thread: G 3" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HD-480-3-P56 1 3~ 8,6 IE3 190-210 YY /220-240 Δ / 380-420 Y 15,5 +450 -530 SKV-HD-480-3-766 2 3~ 12,6 IE3 220-240 Δ / 380-420 Y 23,3 +760 -530 SKV-HD-480-3-776 3 3~ 17,3 IE3 220-240 Δ / 380-420 Y 31,7 +890 -530 For 3-D drawings / STEP files please send us an e-mail.
