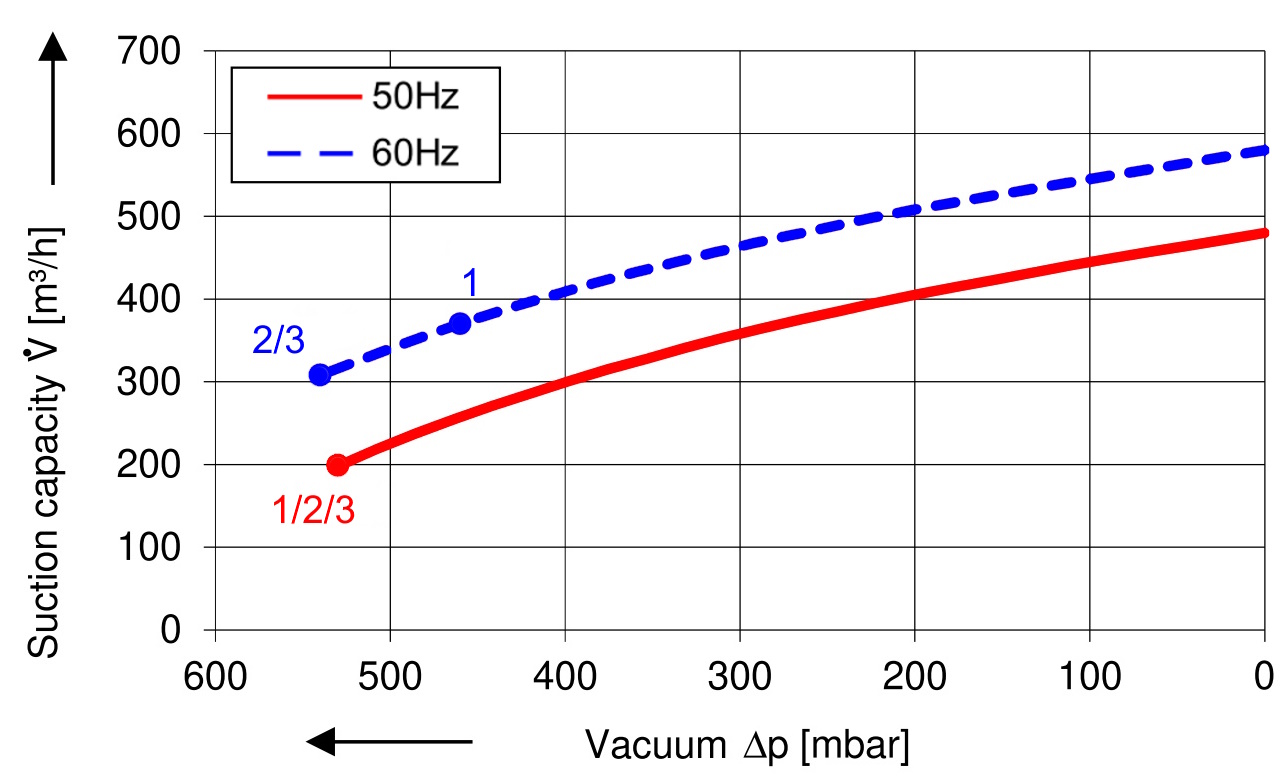

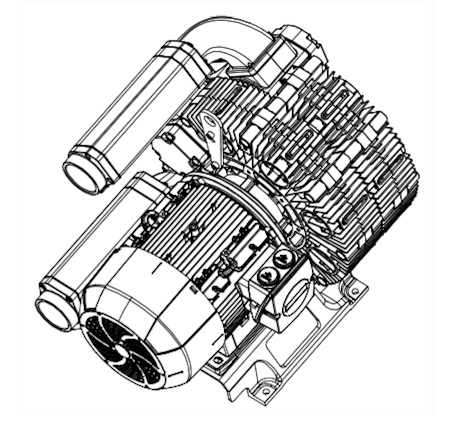

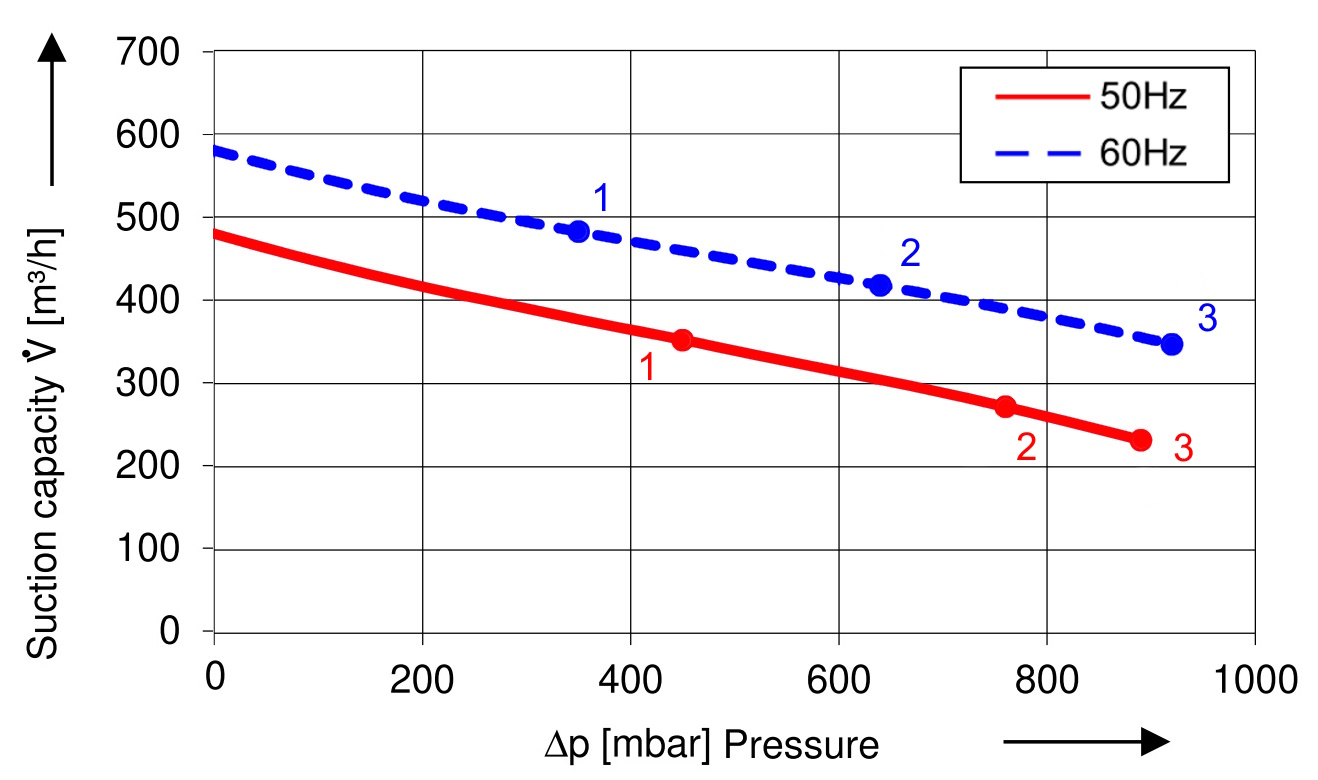

double stage ring blower with 480 m³/h

Customized motor label for side channel blowers or rotary vane pumps Your own motor label: - Your company name - Your own product name - Neutral manual - Neutral packaging and delivery with your delivery notice (coloured printed on A4 paper) Please note that we need your authorization to create a nameplate

Suction filter (with metall cover) G 3" for side channel blowers suitable for: Side channel blowers in pressure mode Function: The side channel blowers operate with very small clearance for the compression, therefore the use of a filter is obligatory. technical data: air flow: 900 m³/h fits for: SKV-NS-1050SKV-NDF-900 Attention: Safe attachment of the suction filter to the SKV only possible with 90° bend!

PUR - tube with diameter 32 mm - 115 mm suitable for: Side channel blowers in vacuum and pressure operation Function: PUR tubes with spiral reinforcement are suitable for many applications, as they are resistant to pressure as well as vacuum.This PUR tube can be used as transport hose for polymer pellets. technical data: Design: high quality PUR-tube with metal reinforcement Properties: inside smooth, outside corrugatedflexiblehardly inflammable (DIN 4102 B1)temperature: -40°C up to +90°Cantistatic < 10⁹ Ohmhighly abrasion resistancecolor: translucent Tube dimensions: DN: 32 / 38 / 40 / 45 / 50 / 60 / 80 / 100 / 115 mm

In-Line-Filter for side channel blowers and rotary vane pumps with G 3" connection thread suitable for: Side channel blowers and rotary vane vacuum pumps in vacuum operation Function: The use of a filter for protecting the side channel blowers as well as the rotary vane vacuum pumps is obligatory. The pumps operate with very small clearance for the compression, so penetrating dirt would damage the device. In the case of the rotary vane vacuum pumps, it would additionally decrease the service-life of the equipment. technical data: air flow: 450 m³/h fits for: G 2": SKV-NS-420 / SKV-NDF-500 G 2 1/2": SKV-NS-530/ SKV-ND-520 G 3":   Attention: the in-line filters are supplied without mounting parts by default!

Safety relief valve RV30 for side channel blowers with G 2½" and 4" connection thread suitable for: Side channel blowers in pressure resp. vacuum operation Function: The side channel blowers are cooled by the external motor fan as well as by the air to be delivered in the side channel. Therefore a safe and proper operation is only possible if the side channel blower is operated below the maximum permissible pressure difference. The use of a safety valve ensures that an adequate amount of air is always available for the cooling of the unit. The safety valves are adjustable and should be set to 90% of the maximum differential pressure of the corresponding side channel blower model. technical data: Description: Safety relief valve manually adjustable(not pre-adjusted!) Application: for limiting a maximum pressure resp. vacuum Spring: V2 Material: aluminium Options: - without filter: pressure operation (limited also in vacuum operation)- with filter: vacuum operation fits for: SKV-NS-530 up to SKV-NS-1370SKV-ND-520 and SKV-ND-1110SKV-NDF-900 up to SKV-NDF-2050   Attention: Don't forget to order the T-neck! The adjustable range depends on the used blower model and the operation mode!
