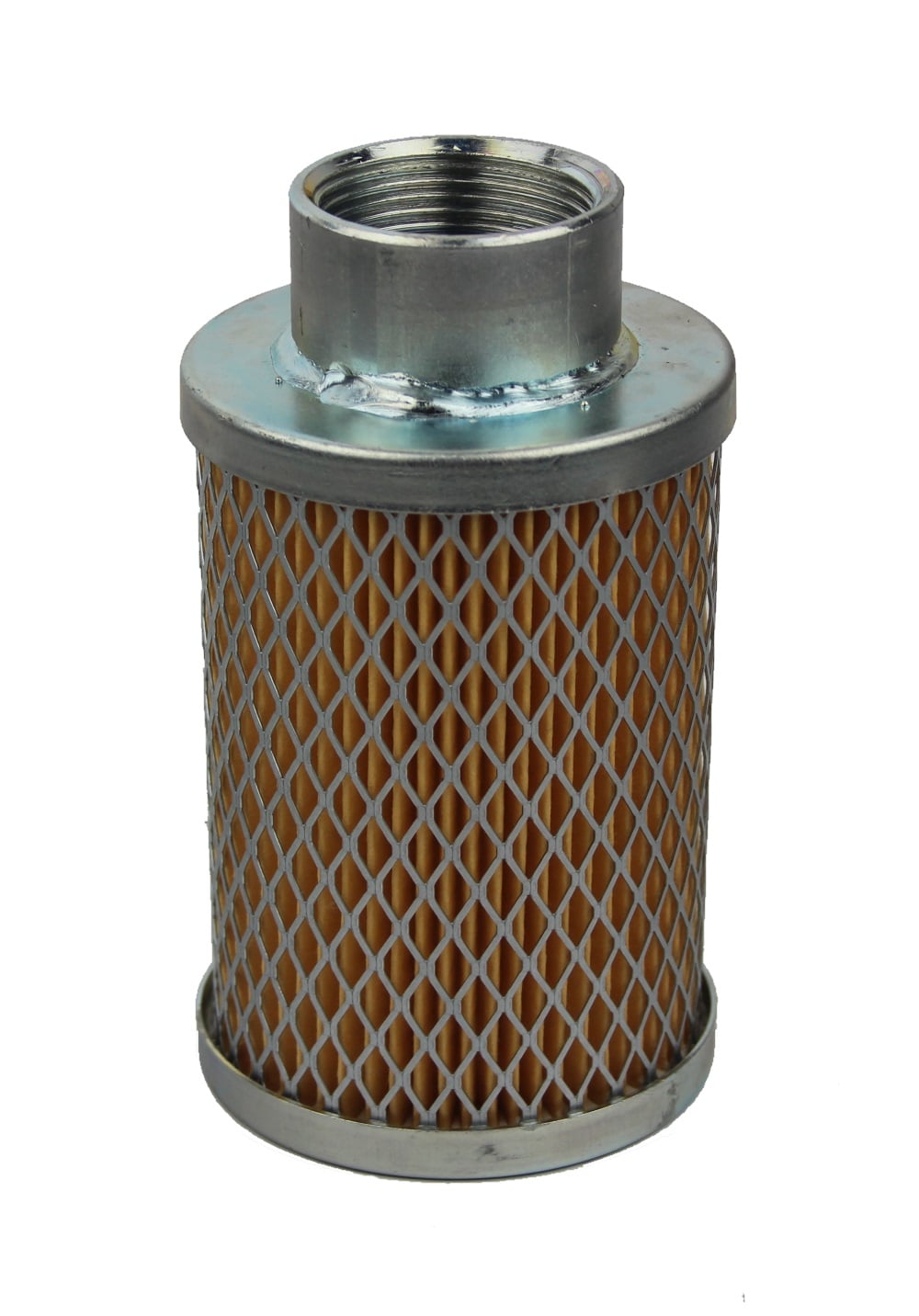

Suction filter G 1¼ (without cover)
€40.78
Available, delivery time: heavily dependent on the destination
Product information "Suction filter G 1¼ (without cover)"
Suction filter (without metal cover) G 1¼" for side channel blowers
conditionally suitable for: Side channel blowers in pressure mode
Function: The side channel blowers operate with very small clearance for the compression, therefore the use of a filter is obligatory.
This filter has much larger pores (20/25 µm instead of 5 µm like our other filters with paper cartridge) and is therefore intended for side channel blowers in clean rooms.
Please be aware that the filter cartridge cannot be removed and therefore not exchanged.
| max. air flow: | 250 m³/h |
| Degree of filtration: | 20/25 µm |
| Dimensions: | IT 1¼" / DA = Ø82 mm / HF = 117/118 mm / Hges = 140/145 mm |
Attention: Safe attachment of the suction filter to the SKV only possible with 90° bend!
Accessory Items
Suction filter (with metal cover) G 1½" with 90° bend and reduction to G 1¼" for side channel blower suitable for: Side channel blowers in pressure mode Function: The side channel blowers operate with very small clearance for the compression, therefore the use of a filter is obligatory. technical data: air flow: 150 m³/h fits for: SKV-HS-87 / SKV-HS-120SKV-HD-87 / SKV-HD-120SKV-HT-120
Suction filter (with metall cover) G 1¼" for side channel blowers suitable for: Side channel blowers in pressure mode Function: The side channel blowers operate with very small clearance for the compression, therefore the use of a filter is obligatory. technical data: air flow: 85 m³/h fits for: SKV-NS-80 / SKV-NS-95SKV-ND-88 / SKV-ND-120SKV-HS-47 / SKV-HS-66SKV-HD-47 / SKV-HD-66 Attention: Safe attachment of the suction filter to the SKV only possible with 90° bend!
Suction filter (with metal cover) G 2" with 90° bend and reduction to G 1¼" for side channel blower suitable for: Side channel blowers in pressure mode Function: The side channel blowers operate with very small clearance for the compression, therefore the use of a filter is obligatory. technical data: air flow: 300 m³/h fits for: SKV-HS-165SKV-HD-165SKV-HT-170
