single stage high pressure ring blower
from 47 - 165 m³/h
comparison tables for models from other manufacturers
Are IE2 motors the better choice?
(advantages and cost analysis)
Single stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 47 m³/hConnection thread: G 1¼" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HS-47-1-171 B140S 1~ 0,55 - 230 3,7 +290 -230 SKV-HS-47-3-916 B140 3~ 0,7 IE1 200-240 Δ / 345-415 Y 2,2 +290 -230 SKV-HS-47-3-P36 1 3~ 0,95 IE3 190-210 YY /220-240 Δ / 380-420 Y 2,1 +290 -230 For 3-D drawings / STEP files please send us an e-mail.
Single stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 66 m³/hConnection thread: G 1¼" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HS-66-1-171 B162S 1~ 0,94 - 230 9,0 +350 -250 SKV-HS-66-3-916 B160 3~ 0,7 IE1 200-240 Δ / 345-415 Y 2,2 +250 -250 SKV-HS-66-3-926 B162 3~ 0,81 IE1 200-240 Δ / 345-415 Y 2,3 +350 -280 SKV-HS-66-3-P36 1 3~ 0,95 IE3 190-210 YY /220-240 Δ / 380-420 Y 2,1 +350 -280 SKV-HS-66-3-P46 2 3~ 1,3 IE3 190-210 YY /220-240 Δ / 380-420 Y 2,9 +350 -280 For 3-D drawings / STEP files please send us an e-mail.
Single stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 87 m³/hConnection thread: G 1¼" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HS-87-1-141 B180S 1~ 1,1 - 230 10,1 +380 -300 SKV-HS-87-3-916 B180 3~ 1,1 IE1 200-240 Δ / 345-415 Y 3,1 +380 -300 SKV-HS-87-3-P16 1 3~ 1,3 IE3 190-210 YY /220-240 Δ / 380-420 Y 2,9 +390 -300 SKV-HS-87-3-P26 2 3~ 1,75 IE3 190-210 YY /220-240 Δ / 380-420 Y 3,5 +430 -310 For 3-D drawings / STEP files please send us an e-mail.
Single stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 120 m³/hConnection thread: G 1¼" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HS-120-3-816 1 3~ 1,5 IE2 200-260 Δ / 350-450 Y 3,05 +340 -310 SKV-HS-120-3-826 2 3~ 2,2 IE2 Sold out -> Replacement model: SKV-HS-120-3-726 / -P26 SKV-HS-120-3-P16 1 3~ 1,75 IE3 190-210 YY /220-240 Δ / 380-420 Y 3,5 +360 -310 SKV-HS-120-3-726 2 3~ 2,5 IE3 220-240 Δ / 380-420 Y 5,0 +420 -310 SKV-HS-120-3-P26 2 3~ 2,5 IE3 190-210 YY /220-240 Δ / 380-420 Y 5,0 +420 -310 For 3-D drawings / STEP files please send us an e-mail.
Single stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 165 m³/hConnection thread: G 1¼" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HS-165-3-816 1 3~ 2,2 IE2 Sold out -> Replacement model: SKV-HS-165-3-P16 SKV-HS-165-3-847 2 3~ 4,0 IE2 Sold out -> Replacement model: SKV-HS-165-3-P26 SKV-HS-165-3-P16 1 3~ 2,5 IE3 190-210 YY /220-240 Δ / 380-420 Y 5,0 +400 -370 SKV-HS-165-3-P26 2 3~ 3,45 IE3 190-210 YY /220-240 Δ / 380-420 Y 6,7 +480 -370 For 3-D drawings / STEP files please send us an e-mail.

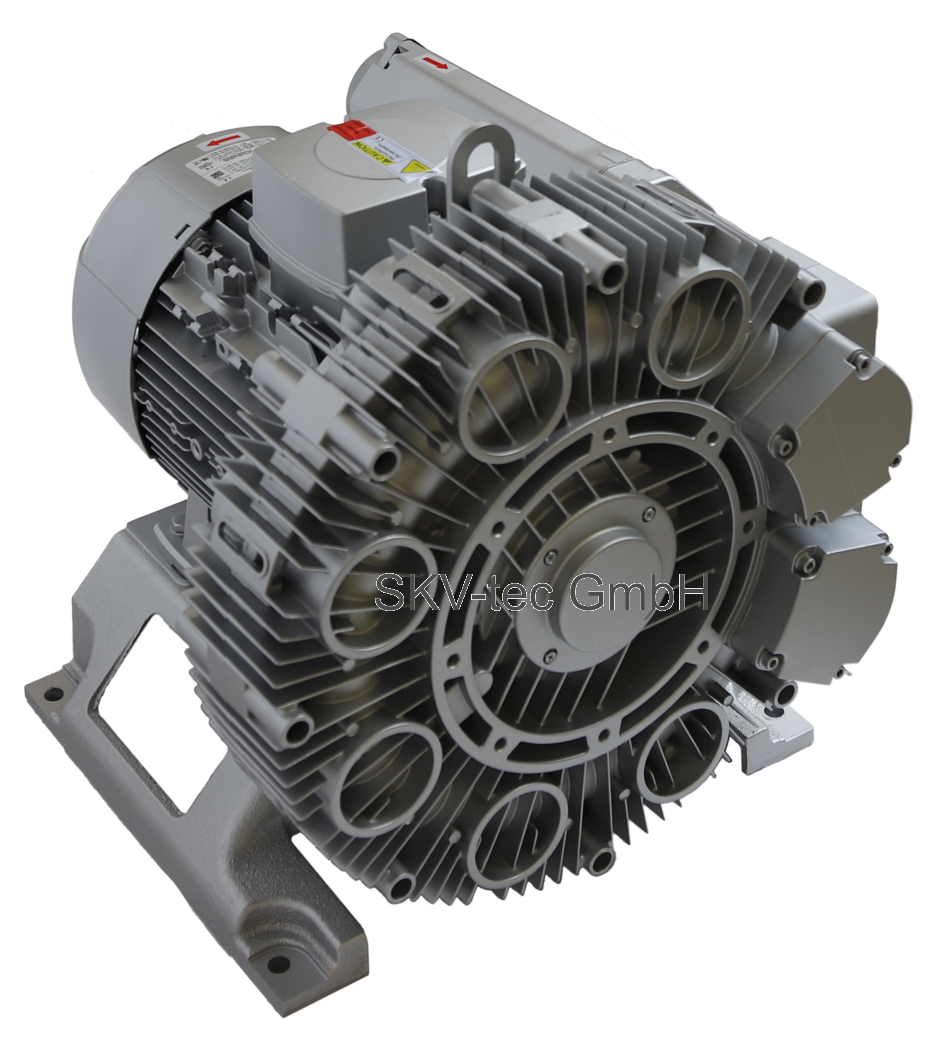

Single stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 315 m³/hConnection thread: G 2½" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HS-315-3-736 1 3~ 4,6 IE3 220-240 Δ / 380-420 Y 8,6 +440 -350 SKV-HS-315-3-746 2 3~ 6,3 IE3 220-240 Δ / 380-420 Y 11,8 +500 -350 For 3-D drawings / STEP files please send us an e-mail.

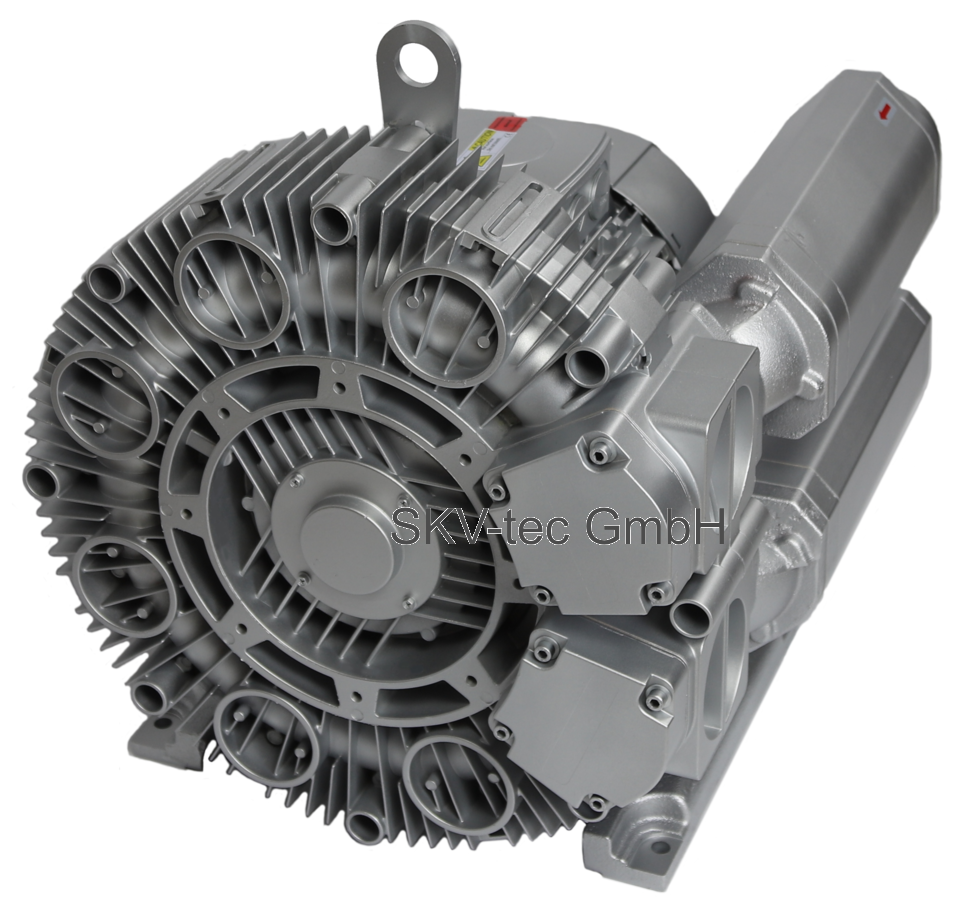

Single stage high pressure ring blower with following specifications for 50 Hz: Max. air flow: 480 m³/hConnection thread: G 3" table { border-collapse: collapse; width: 100%; } td, th { padding: 5px; } tr:nth-child(even) { background-color: #dddddd; } Model Curves Phases Motorpower[kW] Energyclassi-fication Voltage[V] Current[A] Pressuremax. [mbar] Vacuummax. [mbar] SKV-HS-480-3-P36 1 3~ 4,6 IE3 190-210 YY /220-240 Δ / 380-420 Y 8,6 +240 -270 SKV-HS-480-3-746 2 3~ 6,3 IE3 220-240 Δ / 380-420 Y 11,8 +400 -380 SKV-HS-480-3-756 3 3~ 8,6 IE3 220-240 Δ / 380-420 Y 15,5 +550 -380 For 3-D drawings / STEP files please send us an e-mail.
